Prefabricated Vertical Drain (PVD) Design in Hervey Bay

Hervey Bay sits on the Fraser Coast with an elevation barely reaching 10 metres above sea level, and its coastal geology is dominated by Holocene sand deposits and compressible clays up to 25 metres thick. When we design prefabricated vertical drains here, we have to account for the high water table that sits less than 1.5 metres below ground across most of the urban area. A well-calibrated PVD layout accelerates consolidation by shortening the drainage path, and before we finalise the spacing pattern we always cross-check with a consolidation test to confirm the coefficient of consolidation (cv) of the local estuarine clays. Our team has completed PVD projects on the Pialba and Torquay foreshores, where tight settlement tolerances were mandatory.

For soft clays under 20 kPa, PVD spacing tighter than 1.5 metres is often the only way to meet 90% consolidation within a year.

Service characteristics in Hervey Bay

The coastal plain of Hervey Bay started developing rapidly in the 1980s, and much of the new residential land was reclaimed from former wetlands. That history means the subgrade often contains soft to very soft silty clays with undrained shear strengths below 20 kPa. For PVD design we rely on the Barron theory modified by Hansbo, using an equivalent drain diameter of 50 to 100 mm for the prefabricated strip drains. Spacing typically ranges from 1.0 to 2.5 metres depending on the required degree of consolidation at 6 or 12 months. We also evaluate smear zone effects — a factor often underestimated by generic designs. When the clay layer exceeds 15 metres, we combine PVDs with a surcharge preload and install settlement plates to monitor pore pressure dissipation in real time.

Spacing patterns: triangular or rectangular grid
Drain depth: up to 30 metres
Vertical discharge capacity: minimum 100 m³/year per drain

Prefabricated Vertical Drain (PVD) Design in Hervey Bay

Parameter	Typical value
Drain type	Prefabricated band drain (PVD)
Equivalent drain diameter	50–100 mm
Spacing range	1.0–2.5 m (triangular or square)
Maximum drain depth	30 m
Minimum discharge capacity	100 m³/year per drain
Degree of consolidation target	85–95% at 12 months

Critical ground factors in Hervey Bay

AS 1726 sets the framework for geotechnical site investigation in Australia, and for PVD design in Hervey Bay the critical risk is underestimating the coefficient of consolidation from oedometer tests on undisturbed samples. The local clays are often heterogeneous, with thin sand partings that create preferential drainage paths — if you ignore those, your spacing will be too conservative and the project schedule blows out. Another risk is drain clogging caused by fines migration in soils with a plasticity index above 35. We mitigate this by specifying a filter sleeve with an apparent opening size (AOS) of 0.15 mm or smaller, and we always run a compatibility test between the drain and the site soil.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Applicable standards: AS 1726-2017 Geotechnical site investigations, AS 4678-2002 Earth retaining structures, AS 1289.3.6.1 Particle-size distribution, AS 1289.6.6.1 One-dimensional consolidation properties of soils

Our services

We deliver a full PVD design package tailored to the soil conditions and project timeline in Hervey Bay. Every solution includes borehole data correlation, drain layout optimisation, and settlement predictions.

PVD Layout and Spacing Optimisation

Design of triangular or square drain grids with spacing calculated from site-specific cv values. Includes smear zone correction and time-settlement curves for staged construction.

Surcharge and Vacuum Preloading Integration

Combined PVD-surcharge or vacuum preloading schemes to accelerate consolidation in deep soft clay layers. We model pore pressure dissipation using finite element analysis.

Field Monitoring and Verification

Installation of settlement plates, piezometers, and inclinometers to verify consolidation progress. We provide weekly reports with pore pressure ratio (Ru) and degree of consolidation.

Frequently asked questions

How long does consolidation take with PVDs in Hervey Bay clays?

At 1.5 metre spacing, 90% consolidation is typically achieved within 6 to 9 months in the soft estuarine clays found around Urangan and Scarness. For thicker layers or wider spacing, the period may extend to 12–18 months.

What is the typical cost for a PVD design and installation in Hervey Bay?

The cost for a full PVD design package — including site investigation correlation, drain layout, and settlement predictions — ranges between AU$1,170 and AU$3,760, depending on project volume and site complexity.

Can PVDs be installed in areas with a high water table?

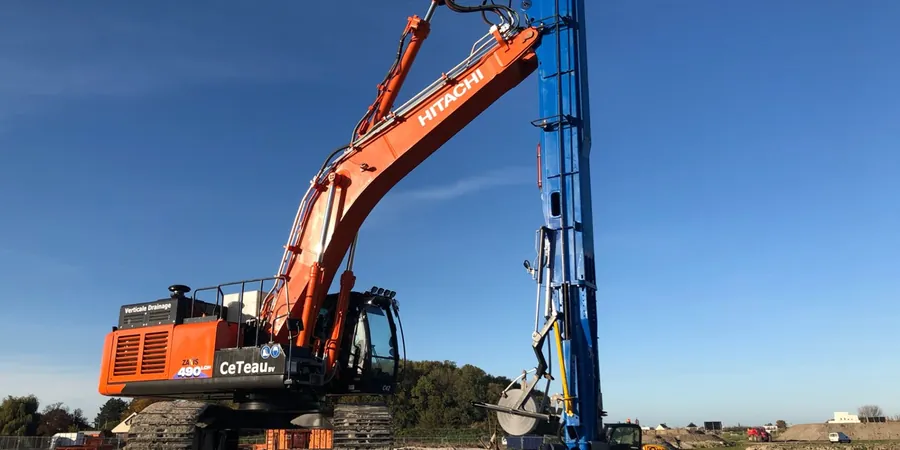

Yes. PVDs work best in saturated conditions because the drains require pore water to flow. In Hervey Bay, where the water table sits at 1–1.5 metres depth, we use a mandrel installation method that minimises soil disturbance and maintains drain continuity.
