In Hervey Bay, many times we see designs that overlook the specific behavior of coastal sands under variable water tables. The factor of safety (FS) calculation is not a generic number pulled from a table. It is a site-specific ratio that compares the available shear strength of the soil against the driving forces acting on a structure. For retaining walls, embankments, and shallow foundations along the Fraser Coast, the FS directly determines whether the design is safe or at risk of failure. Before finalizing a slope design, it is prudent to cross-check assumptions with a focused analysis of stability taludes to confirm that the selected FS accounts for long-term drained conditions in these sandy profiles.
A factor of safety below 1.5 in saturated coastal sands signals imminent instability. Engineers must verify pore pressure assumptions before approving any design in Hervey Bay.
Service characteristics in Hervey Bay
Critical ground factors in Hervey Bay
AS 4678 clause 4.3.2 requires that the factor of safety calculation for retaining walls in Hervey Bay must consider both short-term undrained and long-term drained conditions. The risk is that many designers only check the drained case. In the sandy soils of the Urangan area, rapid drawdown after a storm can create a transient condition where the FS drops below 1.0. The team has documented cases where a wall designed with FS=1.5 under static drained conditions failed during a 1-in-50-year rainfall event because the calculation did not account for perched water behind the wall. This is why we always run a parametric study varying groundwater level and surcharge load.
Our services
We provide two specialized FS calculation services for Hervey Bay projects, each tailored to the local geology and regulatory framework.

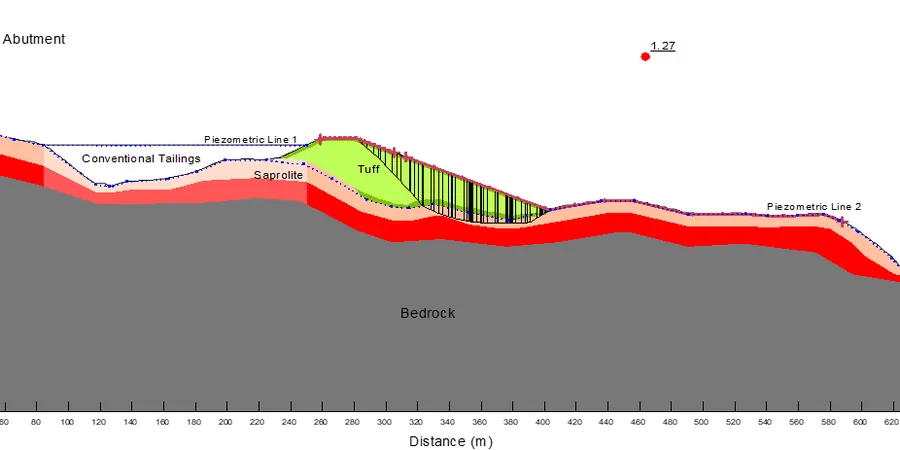

Slope Stability FS Analysis (Limit Equilibrium)
Using Bishop Simplified and Morgenstern-Price methods, we compute factor of safety for natural slopes, cut slopes, and embankments. Inputs include borehole logs, triaxial strength, and groundwater monitoring data. Results are reported with sensitivity charts for water table variation.
Foundation Bearing Capacity FS Verification
We calculate the FS against punching shear and general shear failure for shallow foundations on Hervey Bay sands. The analysis follows Terzaghi and Meyerhof methods, calibrated with plate load test results and SPT N-values. Reports include settlement estimates at working load.
Frequently asked questions
What is the minimum acceptable factor of safety for a retaining wall in Hervey Bay?
AS 4678 specifies a minimum FS of 1.5 for static drained conditions and 1.2 for seismic. For walls retaining saturated sand, we recommend 1.8 to account for rapid drawdown effects common in the Fraser Coast region.
How does the water table in Hervey Bay affect the FS calculation?
A shallow water table reduces effective stress, lowering shear strength. During heavy rain, the phreatic surface can rise to within 1 m of the surface, dropping the FS by 20-30%. The calculation must model transient seepage, not just static conditions.
How much does a factor of safety calculation service cost in Hervey Bay?
The cost typically ranges between AU$1,050 and AU$2,520 depending on the number of cross-sections analyzed, complexity of groundwater conditions, and whether triaxial tests are included. Contact us for a fixed quote based on your specific site.
What is the difference between FS for bearing capacity and FS for sliding?
Bearing capacity FS compares ultimate net bearing pressure to applied load. Sliding FS compares resisting horizontal force to driving force. For a pad footing on sand, bearing FS is set at 3.0, while sliding FS is set at 1.5 per AS 4678.
Can I use the same FS value for static and seismic conditions?
No. AS 1170.4 allows a lower FS for seismic (1.1 to 1.2) because the load is transient. Using a static FS of 1.5 for earthquake loads would be overly conservative and uneconomical. Each load case requires its own calculation.
