Deep Soil Mixing (DSM) Design for Hervey Bay

Hervey Bay’s growth as a coastal hub has seen new residential estates and road corridors push into low-lying areas that were historically tidal wetlands. The sandy silts and soft clays left by the Mary River floodplain present a classic geotechnical challenge: high compressibility and low shear strength. That’s where deep soil mixing design becomes essential. By mechanically blending the existing ground with cementitious binders, we create columns or panels of improved soil that can support embankments and light structures without the need for deep piles. The technique has been used here since the early 2000s for sea-wall upgrades and housing subdivisions, and it continues to prove cost-effective. Before planning a DSM program, it’s wise to cross-check the soil stratigraphy with a resistividad eléctrica SEV survey to map the soft zone thickness accurately.

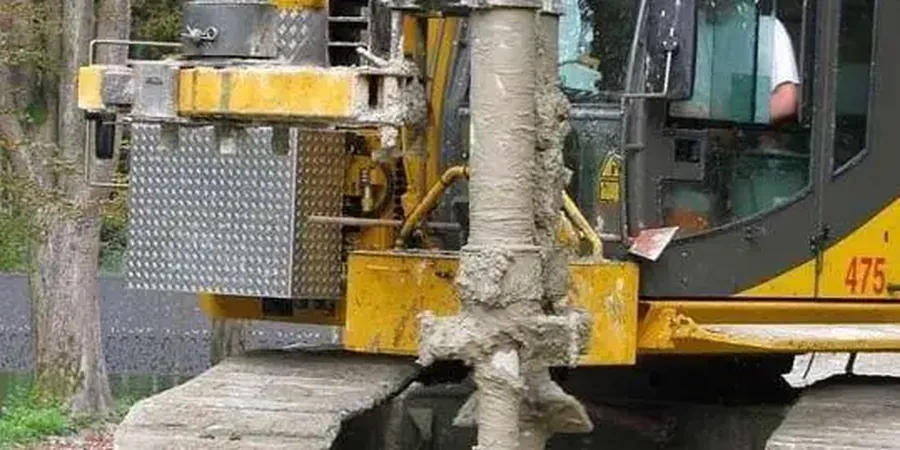

Illustrative image of Deep Soil Mixing (DSM) design in Hervey Bay

For soft coastal soils with shallow groundwater, wet-mix DSM columns extending through peat to firm sands have proven the most reliable solution in Hervey Bay.

Service characteristics in Hervey Bay

Hervey Bay sits on a coastal plain with an average elevation of only 10 metres above sea level, so groundwater is rarely more than one metre below the surface. This shallow water table directly influences deep soil mixing design because the binder hydration process requires careful control of water content and pH. The local geology comprises Quaternary alluvium overlying Tertiary sediments, with peat lenses scattered through the top 8–12 metres. In practice, this means the DSM columns must extend through the peat to bear on the firmer sands beneath. The typical column diameter used in the region is 600–800 mm, with a binder dosage of 200–350 kg per cubic metre depending on the target unconfined compressive strength. The team has found that a wet-mix method works better here than dry mixing because the high moisture content helps distribute the cement slurry evenly.

Deep Soil Mixing (DSM) Design for Hervey Bay

Parameter	Typical value
Column diameter range	600–800 mm
Binder dosage	200–350 kg/m³
Typical depth range	5–15 m
Target UCS (28 days)	0.5–2.0 MPa
Water-cement ratio (wet mix)	0.8–1.2
Area replacement ratio	15–35%

Critical ground factors in Hervey Bay

A typical DSM rig in Hervey Bay weighs around 25 tonnes and operates with a hollow-stem auger that injects binder slurry through the tip as it advances. The main risk in this environment is encountering a thin sand lens under artesian pressure — the fluid can wash out the binder before it sets, leaving a weak zone. Our field protocol includes continuous recording of torque, penetration rate, and injection pressure so the engineer can spot anomalies in real time. If artesian conditions are suspected, a pre-production trial panel is executed to verify the mixing parameters before the full grid is installed. This approach has saved several projects from costly rework.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Applicable standards: AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures (referenced for lateral support design), AS/NZS 1170.2:2021 Structural design actions (wind and earthquake), FHWA-HI-14-019 Deep Mixing for Embankment and Foundation Support

Our services

Our deep soil mixing design service in Hervey Bay covers two main areas of application:

Embankment support DSM

Design of column grids beneath road and railway embankments to limit total and differential settlements. We optimise the area replacement ratio based on the target bearing pressure and the soft soil thickness mapped from boreholes.

Foundation improvement DSM

Block or panel configurations for light industrial slabs and residential footings where natural soil strength is insufficient. We verify the improved ground modulus with plate load tests after curing.

Frequently asked questions

How long does a deep soil mixing design study typically take for a Hervey Bay site?

A standard design study including site investigation review, column layout optimisation, and a verification trial takes 3–4 weeks. If the site has complex stratigraphy with peat layers, an additional week for laboratory mix design testing is recommended.

What is the typical cost range for deep soil mixing design in Hervey Bay?

The design and verification phase usually falls between AU$2.370 and AU$10.210 depending on the number of trial columns and the extent of laboratory testing. This does not include the full installation cost, which varies by volume and access.

Can DSM be used for temporary works like excavation shoring?

Yes, DSM columns arranged as tangent or secant walls can provide temporary lateral support during excavation. In Hervey Bay’s soft soils, they also cut off groundwater flow when designed with a minimum overlap of 100 mm and an appropriate binder content for low permeability.
